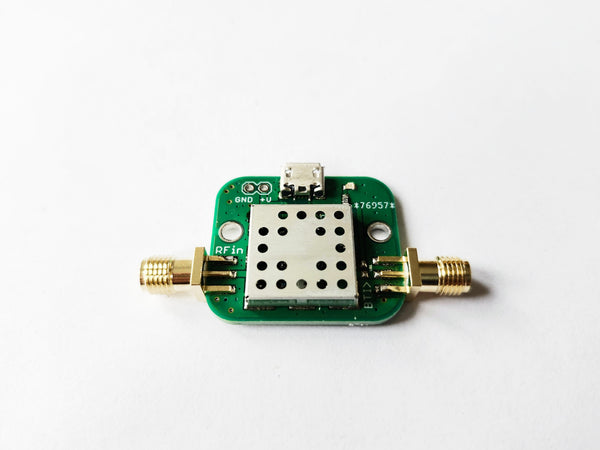

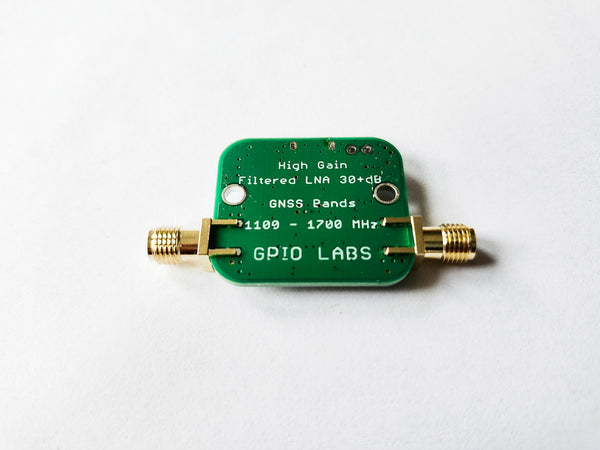

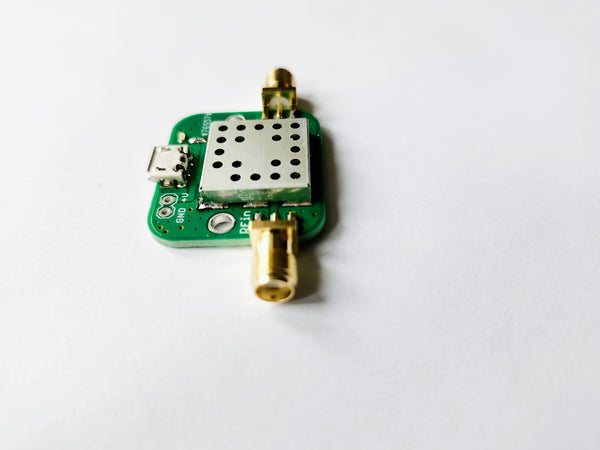

PRODUCT OVERVIEW
This is a small, Pre-Filtered GNSS Low Noise Amplifier. It covers the following technologies:
- GPS L1-L5
- BeiDou COMPASS
- GLONASS
- NavIC
The LNA has an average gain of 34 dB in the pass band and Noise Figure of 1 dB. This product has excellent out-of-band rejection specifications, provides power handling of up to a maximum -5 dBm and has an operating temperature range of -40C to +85C. The part can be powered using either a micro-USB cable or providing +5V to the header.
Please note that this part will block any DC on the RF input or output.
APPLICATIONS
- Receiving weak GNSS signals
- Rejection of strong signals in Cellular, LTE, UHF and 915 MHz, 2.4 GHz ISM bands
- GNSS signal processing
SPECIFICATIONS
Passband: 1100 MHz - 1700 MHz
Frequency ........... Gain
100 MHz ......... 4 dB
800 MHz ......... 3 dB
900 MHz ......... 0 dB
1000 MHz ......... 9 dB
1100 MHz ......... 35 dB
1176 MHz ......... 36 dB
1200 MHz ......... 36 dB
1227 MHz ......... 36 dB
1300 MHz ......... 36 dB
1400 MHz ......... 35 dB
1500 MHz ......... 34 dB
1575 MHz ......... 33 dB
1600 MHz ......... 32 dB
1700 MHz ......... 32 dB
1800 MHz ......... 20 dB
1900 MHz ......... 2 dB
2000 MHz ......... -20 dB
2100 MHz ......... -10 dB
2500 MHz ......... -3 dB
3000 MHz ......... -2 dB
NOTES
The filter uses SMA-F connectors.
Max RF Input = -5 dBm
RELATED PRODUCTS
BANDS COVERED
GPS (USA)
| Frequency | Name | Use |
|---|---|---|
| 1575.42 MHz | L1 | Civil (C/A code), military (P(Y) code) |
| 1227.60 MHz | L2 | Military P(Y), civilian L2C |
| 1381.05 MHz | L3 | Nuclear detonation detection |
| 1379.91 MHz | L4 | Experimental ionospheric research |
| 1176.45 MHz | L5 | Safety-of-life, high accuracy civil |
GLONASS (Russia)
| Band | Frequency Range | Use |
|---|---|---|
| 1598.0625–1605.375 MHz | L1 (G1) | Civil standard |
| 1242.9375–1248.625 MHz | L2 (G2) | Civil/military |
| 1202.025 MHz | L3 (G3) | CDMA, interoperability with GPS L5 |
Galileo (EU)
| Frequency | Name | Use |
|---|---|---|
| 1575.42 MHz | E1 | Open service, shared with GPS L1 |
| 1191.795 MHz | E5 | Broadband, highest accuracy civil signal |
| 1176.45 MHz | E5a | Open service, interoperable with GPS L5 |
| 1207.14 MHz | E5b | Open service, high integrity |
| 1278.75 MHz | E6 | Commercial/authenticated service (HAS) |
BeiDou (China)
| Frequency | Name | Use |
|---|---|---|
| 1561.098 MHz | B1I | Legacy open service (BDS-2) |
| 1575.42 MHz | B1C | Modern open service (BDS-3), interop with GPS L1/Galileo E1 |
| 1176.45 MHz | B2a | Open service (BDS-3), interop with GPS L5/Galileo E5a |
| 1207.14 MHz | B2b | Open service (BDS-3), PPP service |
| 1191.795 MHz | B2 (B2a+B2b) | Wideband, same center as Galileo E5 |
| 1268.52 MHz | B3I | Authorized service |
NavIC (India)
| Frequency | Name | Use |
|---|---|---|
| 1176.45 MHz | L5 | Standard positioning service |
QZSS (Japan)
| Frequency | Name | Use |
|---|---|---|
| 1575.42 MHz | L1 | Interoperable with GPS L1 |
| 1227.60 MHz | L2 | Interoperable with GPS L2 |
| 1176.45 MHz | L5 | Interoperable with GPS L5 |
| 1278.75 MHz | L6 (LEX) | Centimeter-level augmentation (CLAS service) |
