PRODUCT OVERVIEW
This is a small, cost-effective band pass filter centered at 869 MHz with typical insertion loss of 2.7 dB at 869 MHz and less than 5 dB from 865 MHz to 876 MHz.
This filter has excellent rejection specifications. Rejection at 950 MHz for instance, is 55 dB. The filter also provides power handling of up to a maximum +15 dBm and has an operating temperature range of -40C to +85C.
APPLICATIONS

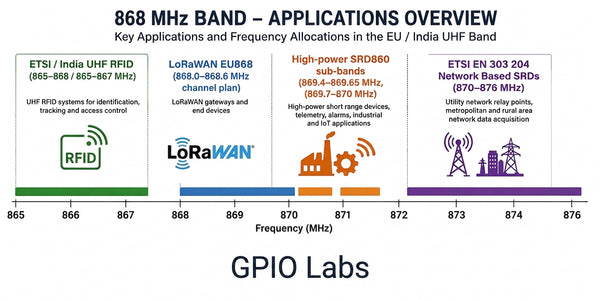

- ETSI/India UHF RFID (865-868 / 865-867 MHz)
- LoRaWAN EU868 (868.0-868.6 MHz channel plan)
- High-power SRD860 sub-bands (869.4-869.65 MHz, 869.7-870 MHz)
- ETSI EN 303 204 Network Based SRDs (870-876 MHz) — utility network relay points, metropolitan and rural area network data acquisition
- Fixed-link and metering infrastructure needing higher power than portable RFID/SRD limits allow
- Rejecting adjacent cellular/LTE and 915 MHz ISM band energy
SPECIFICATIONS

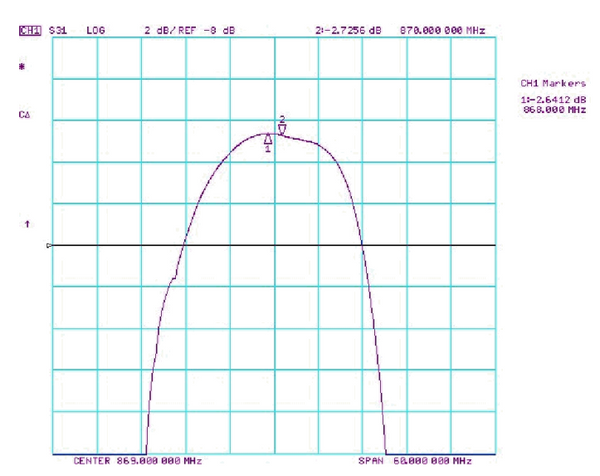

Passband
865 - 876 MHz

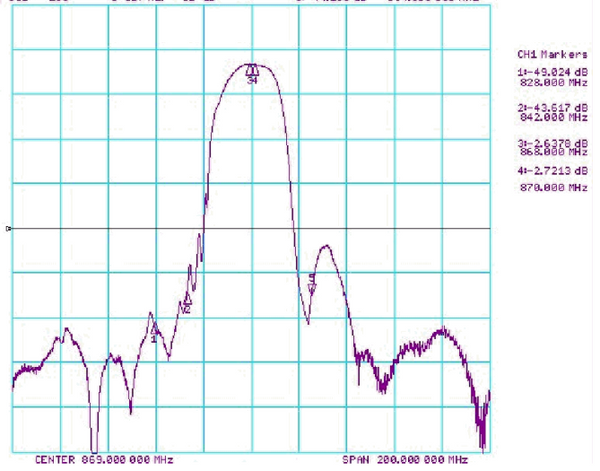

Frequency Typical Attenuation
400 MHz 50 dB
800 MHz 55 dB
950 MHz 55 dB
NOTE
The filter uses SMA-F PCB edge mount connectors.
Maximum RF Input Power: +15 dBm
RELATED PARTS
- A narrower filter for 863-870 MHz band SRD860; ETSI/India RFID.
