426 MHz Bandpass Filter Band Pass; 20 MHz Bandwidth

Regular price $42.00

PRODUCT OVERVIEW

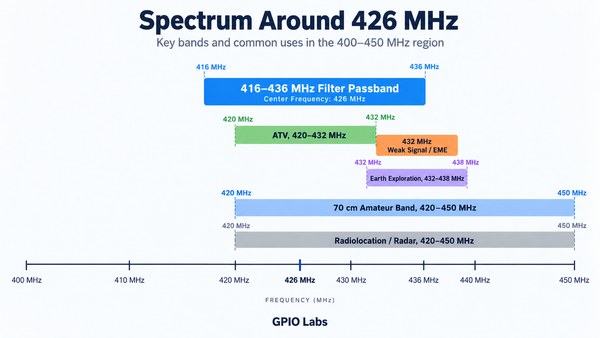

This is a small, cost-effective band pass filter centered at 426 MHz with a typical insertion loss of 2.5 dB at the center of the pass band. This filter has excellent rejection specifications. Rejection at 400 MHz and 500 MHz for instance, is greater than 30 dB. The filter also provides power handling of up to a maximum +15 dBm and has an operating temperature range of -40C to +85C.


APPLICATIONS

  •  Amateur radio
  •  Rejection of strong signals in Cellular, LTE, UHF and 915 MHz ISM bands



SPECIFICATIONS

Passband

426 + 10 MHz

Frequency       Typical Attenuation

DC-400 MHz         30 dB

500 MHz               30 dB

NOTES

  • The filter uses SMA-F PCB edge mount connectors.
  • Maximum RF input signal Level: +15 dBm
