869 MHz Bandpass Filter Band Pass with 10 MHz Bandwidth

Regular price $19.92

PRODUCT OVERVIEW

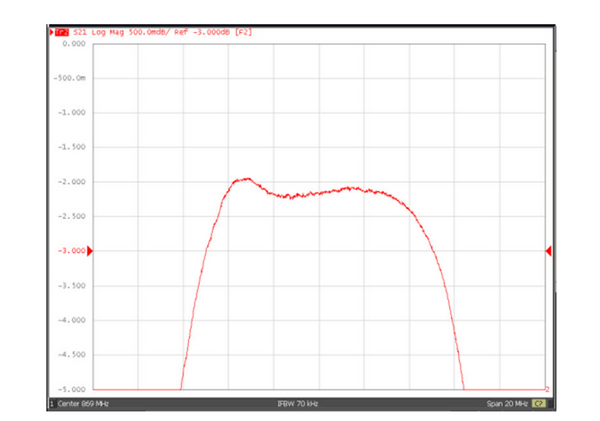

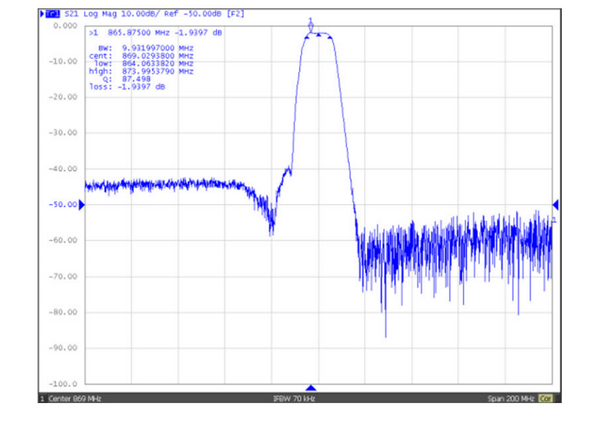

This is a small, cost-effective band pass filter centered at 869 MHz with typical insertion loss of 2.7 dB at 869 MHz and less than 5 dB across the 10 MHz pass band. This filter has excellent rejection specifications. Rejection at 950 MHz for instance, is 55 dB. The filter also provides power handling of up to a maximum +13 dBm and has an operating temperature range of -40C to +85C.



APPLICATIONS

  •  ISM band, Short Range Devices, Industrial Telemetry, Asset Tracking
  •  Rejection of strong signals in Cellular, LTE, UHF and 915 MHz ISM bands



SPECIFICATIONS

Passband

869 + 5 MHz

Frequency       Typical Attenuation

400 MHz               50 dB

800 MHz               55 dB

950 MHz                55 dB

NOTE

The filter uses SMA-F PCB edge mount connectors.

Maximum RF Input Power: +13 dBm

Maximum DC Voltage: +5 V
