PRODUCT OVERVIEW
This is an ultra linear low noise amplifier that uses the PGA-103+. It provides exceptional gain and noise figure. The LNA can be used in a number of different receiver applications such as Ham Radio, TV reception, etc. The product is ideally suited as a pre-amplifier where the USB power supply means you can power it off your laptop. The noise figure of this LNA is only 0.5 dB at 400 MHz.
FEATURES
- Wideband LNA operates from 10 MHz to 3 GHz

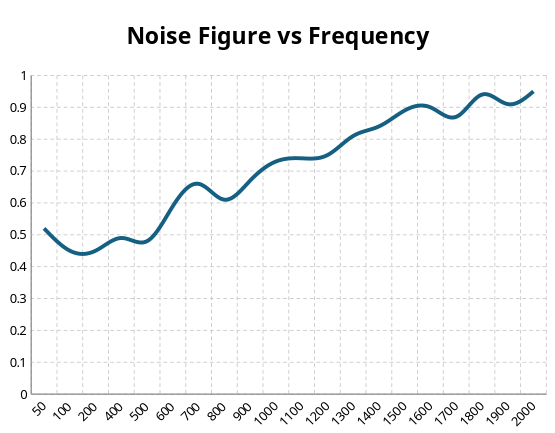

- 0.5 dB Noise Figure at 400 MHz
- LED power indicator
- SMA-F connectors
- USB powered (cable not included)
SPECIFICATIONS
Frequency Gain
10 MHz 22 dB
50 MHz 25 dB
100 MHz 25 dB
500 MHz 20 dB
1 GHz 15 dB
2 GHz 10 dB
3 GHz 5 dB
Output IP3 @ 2 GHz
+40 dBm
Maximum RF Input Power
+20 dBm
