PRODUCT OVERVIEW

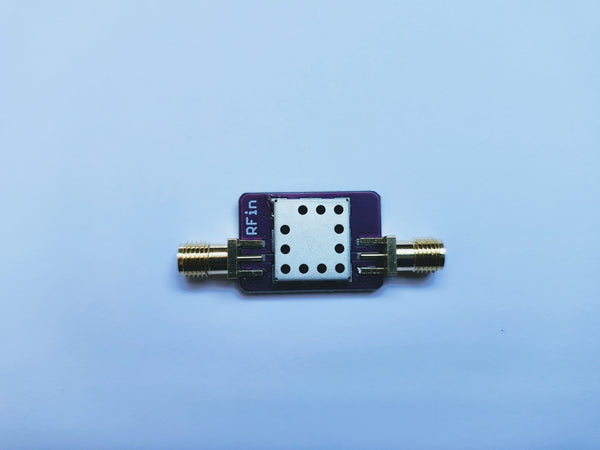

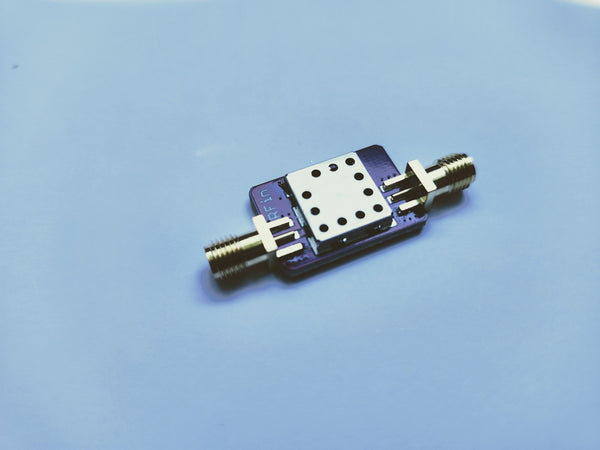

This is a small 1 GHz or 1000 MHz Low Pass Filter. Typical insertion loss is less than 0.5 dB from 50 MHz to 1 GHz. The filter provides excellent power handling of up to a maximum 2W or +33 dBm and has an operating temperature range of -40C to +85C.
APPLICATIONS
- Suppression of strong signals in Cellular, 2.4 GHz ISM bands.

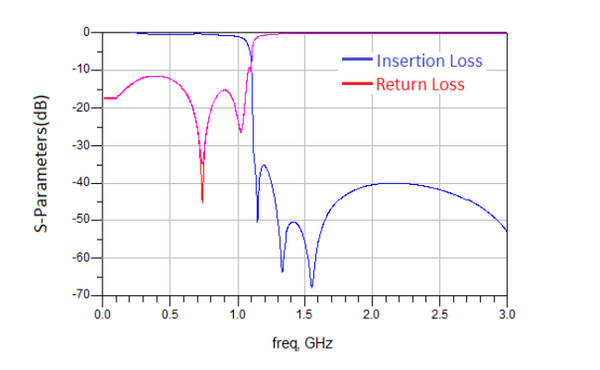

SPECIFICATIONS
| FREQUENCY (MHz) | MINIMUM ATTENUATION |
| 1500 MHz | 50 dB |
| 2000 MHz | 40 dB |
| 2500 MHz | 45 dB |
| 3000 MHz | 40 dB |
NOTE: The filter uses SMA-F connectors.
