2.4 GHz 2450 MHz Bandpass filter for High Power (2 Watt) Applications in the ISM band

Regular price $15.00

PRODUCT OVERVIEW

This is a small, cost-effective band pass filter centred at 2.45 GHz with a typical insertion loss of 1.5 dB in the pass band. The filter provides excellent power handling of up to a maximum 2W or +33 dBm and has an operating temperature range of -40C to +85C.



APPLICATIONS

  •  2.45 GHz ISM band applications such as Wi-Fi, Bluetooth, Zigbee, Cordless phones, etc.
  •  Rejection of strong signals in Cellular, LTE, UHF bands



SPECIFICATIONS

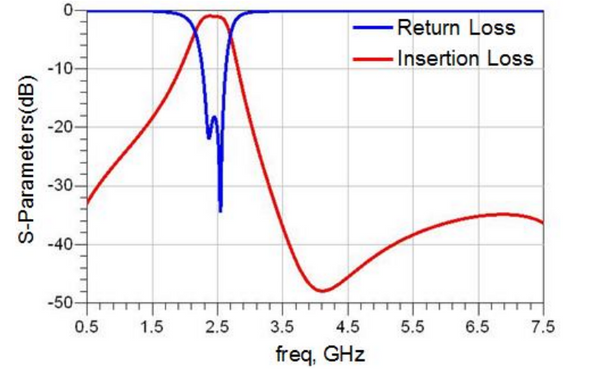

Please refer to the S21 plot in the product photos for out-of-band rejection specifications.

If you are looking for a 2450 MHz filter with a sharper roll-off check this one out.

NOTE: The filter uses SMA-F connectors.
