3450 MHz Bandpass Filter (3400 to 3500 MHz band)

Regular price $75.00

PRODUCT OVERVIEW

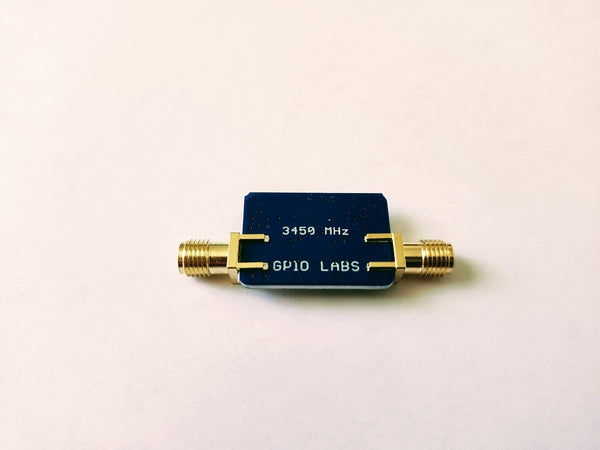

This is a small band pass filter centered at 3.45 GHz with a bandwidth of 100 MHz. The band extends from 3400 MHz to 3500 MHz.

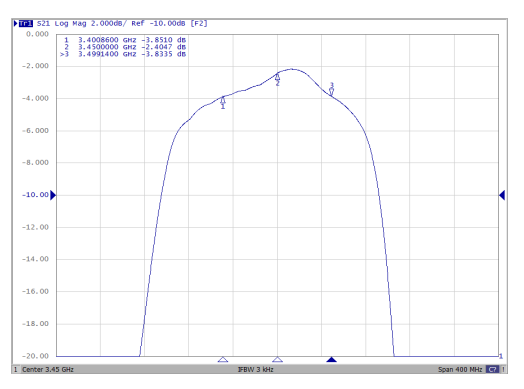

Typical insertion loss of less than 4 dB in the pass band. This filter has excellent rejection specifications, provides power handling of up to a maximum +20 dBm and has an operating temperature range of -40C to +85C.


APPLICATIONS

The frequency range from 3400 to 3500 MHz is part of 5G Band n78 and 4G LTE band 42.

Internationally, this range is considered part of the broader C-Band, which typically spans from 3.4 GHz to 4.2 GHz. The 3.4–3.6 GHz segment is especially important for 5G and advanced wireless services

This band is used for:

  • 5G Mobile Networks
  • CBRS
  • Fixed Wireless Access
  • Radiolocation and Defense (3400–3475 MHz)
  • Radar Systems
  • Satellite Services

The filter can be used in radio scanners, receivers, spectrum analyzers and other radio apparatus.

SPECIFICATIONS

Passband: 3450 +/- 50 MHz

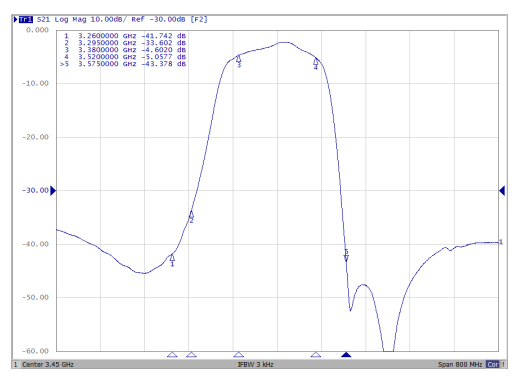

Frequency                       Typical Attenuation

50 MHz - 3000 MHz           > 30 dB

3600 MHz - 400 MHz         > 30 dB



 NOTES

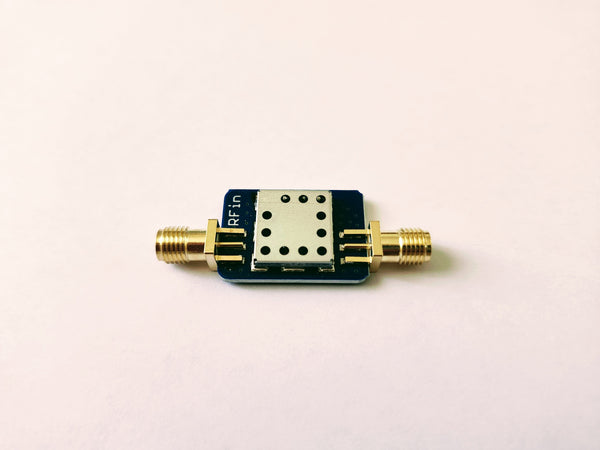

  • The filter uses SMA-F PCB edge mount connectors.
  • Maximum RF input signal Level: +20 dBm
  • Max DC voltage 3 VDC
  • Consider using a Low Noise Amplifier before this filter to reduce the noise figure
