- PRODUCT OVERVIEW
This is a 3rd order AIS bandpass filter with excellent sideband rejection. This product is ideally suited for AIS receiver applications at 162 MHz*. In the absence of a bandpass filter, strong signals in adjacent bands such as FM can saturate the receiver. This filter is also available in a version with an enclosure.
SPECIFICATIONS
| Frequency (MHz) | Typical Attenuation (dB) |
|---|---|
| 88 | 68 |
| 98 | 60 |
| 108 | 50 |
| 130 | 23 |
| 140 | 7 |
| 150 | 4 |
| 160 | 2 |
| 162 | 2 |
| 165 | 4 |
| 180 | 9 |
| 250 | 30 |
| 500 | 42 |
AIS uses the high side of the duplex from two VHF radio "channels" (87B) and (88B)
- Channel A 161.975 MHz (87B)
- Channel B 162.025 MHz (88B)
NOTES
- The filter uses SMA-F connectors.
- The Maximum RF input power for this filter is +30 dBm or 1 Watt.

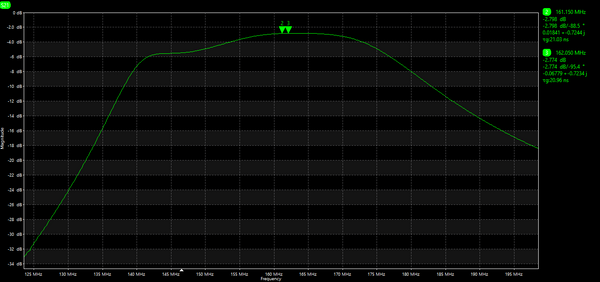

Image from hackerfantastic
