PRODUCT OVERVIEW

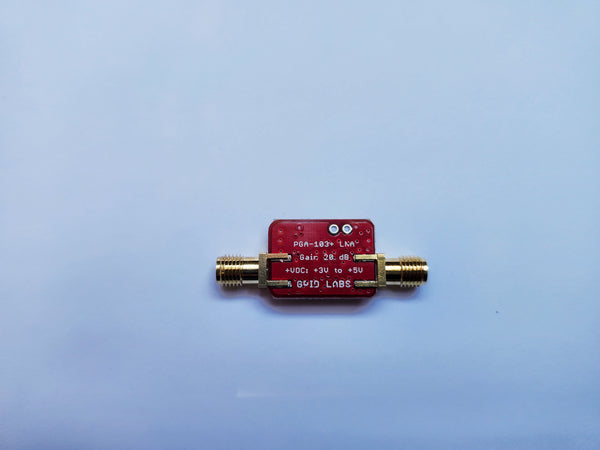

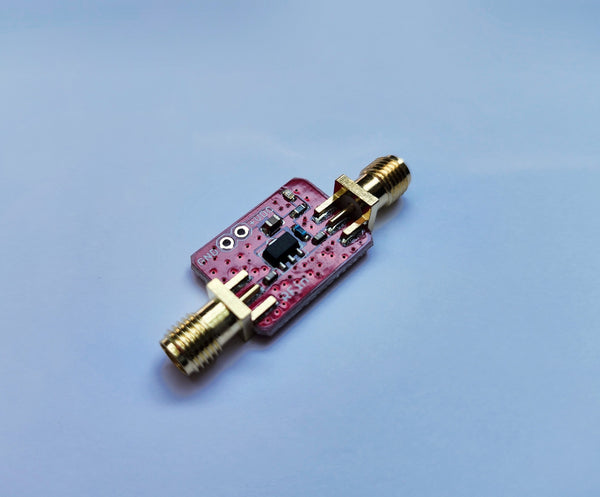

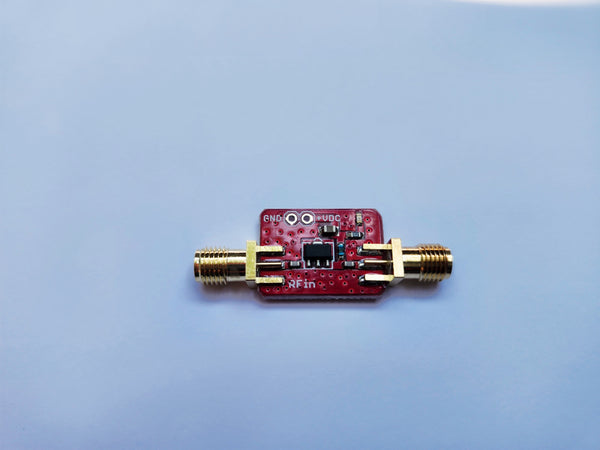

This compact ultra-linear low noise amplifier is built around the Mini-Circuits PGA-103+, delivering exceptional gain and noise figure in a smaller form factor than our standard PGA-103+ LNA module.
This compact LNA is the right choice when space matters most and you're working with typical 50Ω system conditions.
Noise figure is just 0.5 dB at 400 MHz, with output IP3 of +40 dBm at 2 GHz.
FEATURES
- Compact PGA-103+ LNA, 10 MHz to 3 GHz
- 0.5 dB Noise Figure at 400 MHz
- LED power indicator
- SMA-F connectors
- DC header, +3V to +5V
SPECIFICATIONS
Frequency Gain
10 MHz 22 dB
50 MHz 25 dB
100 MHz 25 dB
500 MHz 20 dB
1 GHz 15 dB
2 GHz 10 dB
3 GHz 6 dB
Output IP3 @ 2 GHz
+40 dBm
Maximum RF Input Power
+20 dBm
DC Input Voltage Range: +3V to 5V
Here is a shielded PGA-103+ LNA module that operates over a wider DC voltage +5V to +12V with a Micro USB power option
