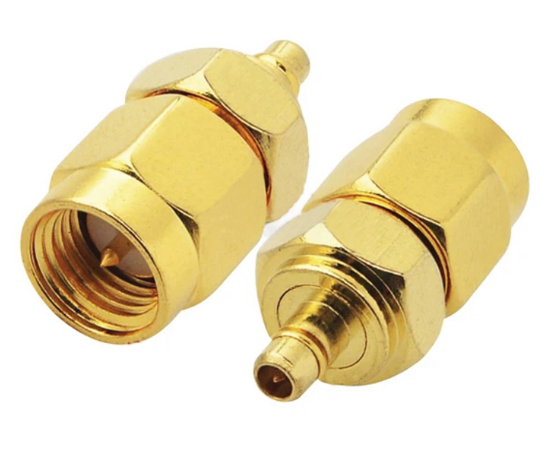

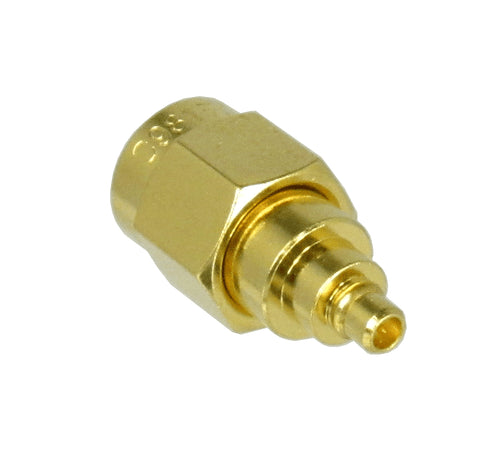

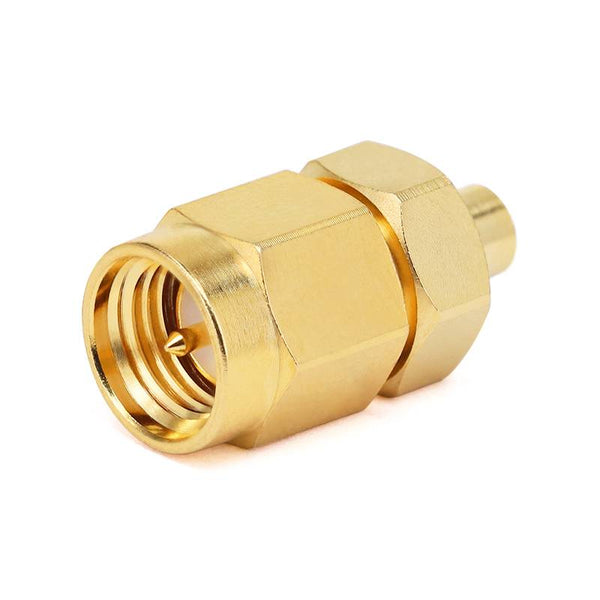

SMA Male to MMCX Male RF Adapter
The SMA Male to MMCX Male RF Adapter provides a compact and reliable solution for connecting RF devices that use SMA and MMCX connector interfaces. Featuring an SMA Male connector on one side and an MMCX Male connector on the other, this adapter enables seamless integration between antennas, SDRs, wireless modules, GPS receivers, IoT devices, and RF test equipment.
Designed for low-loss signal transmission and dependable RF performance, the adapter is ideal for applications where space is limited and a secure RF connection is required. The MMCX connector's snap-on design allows for quick connection and disconnection, while the SMA interface provides a robust threaded connection commonly found on RF equipment and antennas.
Key Features
- SMA Male to MMCX Male configuration
- 50 Ω impedance
- Compact, lightweight design
- Low insertion loss
- Reliable RF performance
- Precision-machined metal construction
- Easy snap-on MMCX connection
Typical Applications
📡 Software Defined Radio (SDR)
Connect SDR receivers and transceivers to antennas or accessories that use MMCX interfaces.
📶 Wireless Modules and IoT Devices
Adapt antennas and RF accessories for cellular, LoRa, Bluetooth, Zigbee, and Wi-Fi modules.
🛰️ GPS and GNSS Systems
Connect GPS antennas and receivers that utilize MMCX connectors.
📻 Embedded RF Development
Interface development boards, evaluation kits, and RF modules with external antennas.
🔬 Test and Measurement
Connect RF test equipment and accessories during prototyping and laboratory testing.
Specifications
- Connector A: SMA Male
- Connector B: MMCX Male
- Impedance: 50 Ω
- Construction: Gold-plated contacts with metal body
Whether you're connecting an SDR, integrating an embedded wireless module, or adapting an antenna for a GPS receiver, this SMA Male to MMCX Male adapter provides a simple and dependable solution while maintaining excellent RF signal integrity.
Quantity 1 (one)
